Fujian Huamo Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of small capacity edi module in China. If you're going to wholesale bulk small capacity edi module made in China, welcome to get catalog and price list from our factory. All custom made products are with high quality and competitive price. Also, OEM service is available.
Product Details

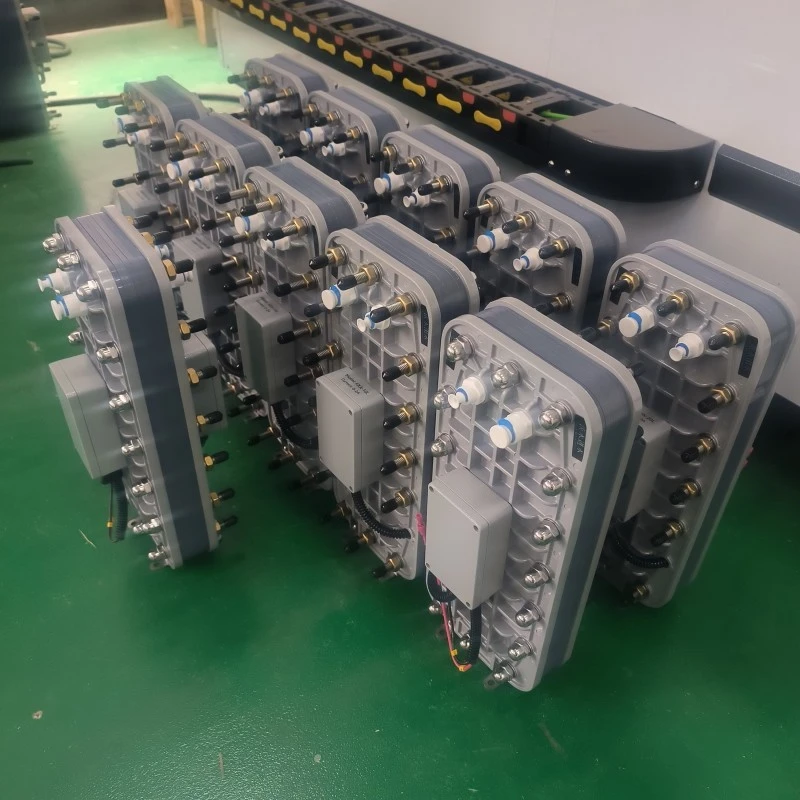

Small capacity EDI module slashes skid footprints for localized equipment integration, making it suitable for processing rates between 50 L/H and 300 L/H in smaller diagnostic platforms, laboratory water units, and mobile pure water trailers. Operating within a low-amperage electrical profile of 0-2A, this specialized small capacity EDI module reduces overall power supply and thermal cooling requirements while continuously producing pure water with a resistivity range of 10-18.2 MΩ·cm to ensure compliance with strict industrial rinse and reagent specifications. The unit features a leak-proof compression design built with high-strength structural sealing materials and heavy-duty plates to ensure mechanical integrity under variable field conditions, utilizing robust internal components that deliver a typical service life of approximately 4 years when fed with compliant reverse osmosis permeate.
Product Specifications
|
Parameter |
KLX-50L |
KLX-100L |
KLX-150L |
KLX-200L |
KLX-250L |
KLX-300L |
|
Module Flow (L/H) |
50 |
100 |
150 |
200 |
250 |
300 |
|
Recovery Rate (%) |
75-85% |
75-85% |
75-85% |
75-85% |
75-85% |
75-85% |
|
Product Stream Adjust (L/H) |
50 |
100 |
150 |
200 |
250 |
300 |
|
Concentrate Stream Adjust (L/H) |
10 |
20 |
30 |
40 |
50 |
60 |
|
Operating Current (A) |
0-2 |
0-2 |
0-2 |
0-2 |
0-2 |
0-2 |
|
Feed Water Source |
RO Permeate / Product Water (Two-Stage RO Recommended) |
|||||
|
Feed Water Conductivity (µS/cm) |
1-10 (Maximum Entry ≤ 25) |
|||||
|
Feed Water Temperature (°C) |
5 - 35 (Optimal Operating Performance at 25°C) |
|||||
|
Product Water Resistivity (MΩ·cm) |
10 - 18.2 |
|||||
Technical Advantages & Brand Capabilities
Why Partner With Our Enterprise?
1. Single-Source Technical Engineering Support: We provide comprehensive system design assistance, including 3D CAD modeling, custom connection layouts, and localized electrical control integration.
2. Targeted Component Restoration & Diagnostic Services for small capacity EDI module: Our engineers diagnose internal fouling or pressure drops in smaller cells, offering specialized cleaning procedures to restore performance and extend equipment life.
3. Rigid Quality Control Protocols: Every unit undergoes thorough pressure holding tests and current calibration before leaving our facility to ensure instant deployment readiness.
Frequently Asked Questions (FAQ)
Q1: What is the maximum allowable feed water conductivity?
A1: The module requires an inlet conductivity between 1-10 µS/cm, with an absolute maximum limit of 25 µS/cm for short operational periods.
Q2: Does this unit require automated control integration?

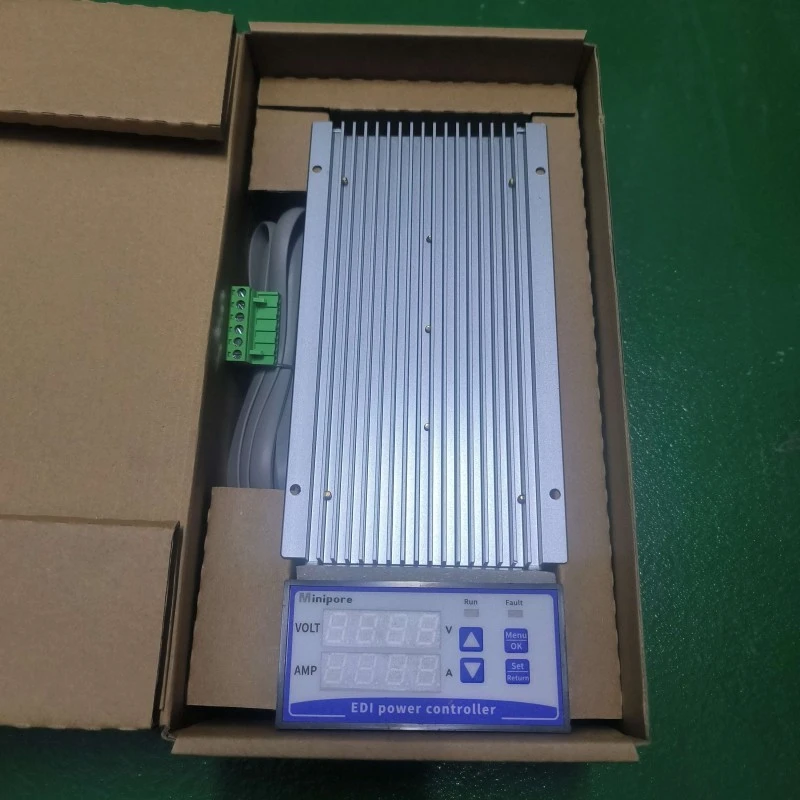

A2: Yes, it is highly recommended to interlock the DC power supply with a flow sensor to automatically shut off power if the water flow drops, protecting internal components from thermal damage.
Q3: What is the expected lifespan of the core modules?
A3: With clean RO pre-treatment and regular maintenance, the module maintains an active service life of approximately 4 years.
