Industrial Wastewater Reuse & Water Recovery System
|
Location |
Southeast Asia |
|
Industry |
Malt Manufacturing Plant |
|
Membrane Products |
HUAMO UFHM-2880 Ultrafiltration Membrane & LRHM-10040 RO Membrane |
|
System Capacity |
15,000 m³/day Feed Water → 12,000 m³/day Permeate |
|
Recovery Rate |
≥80% |

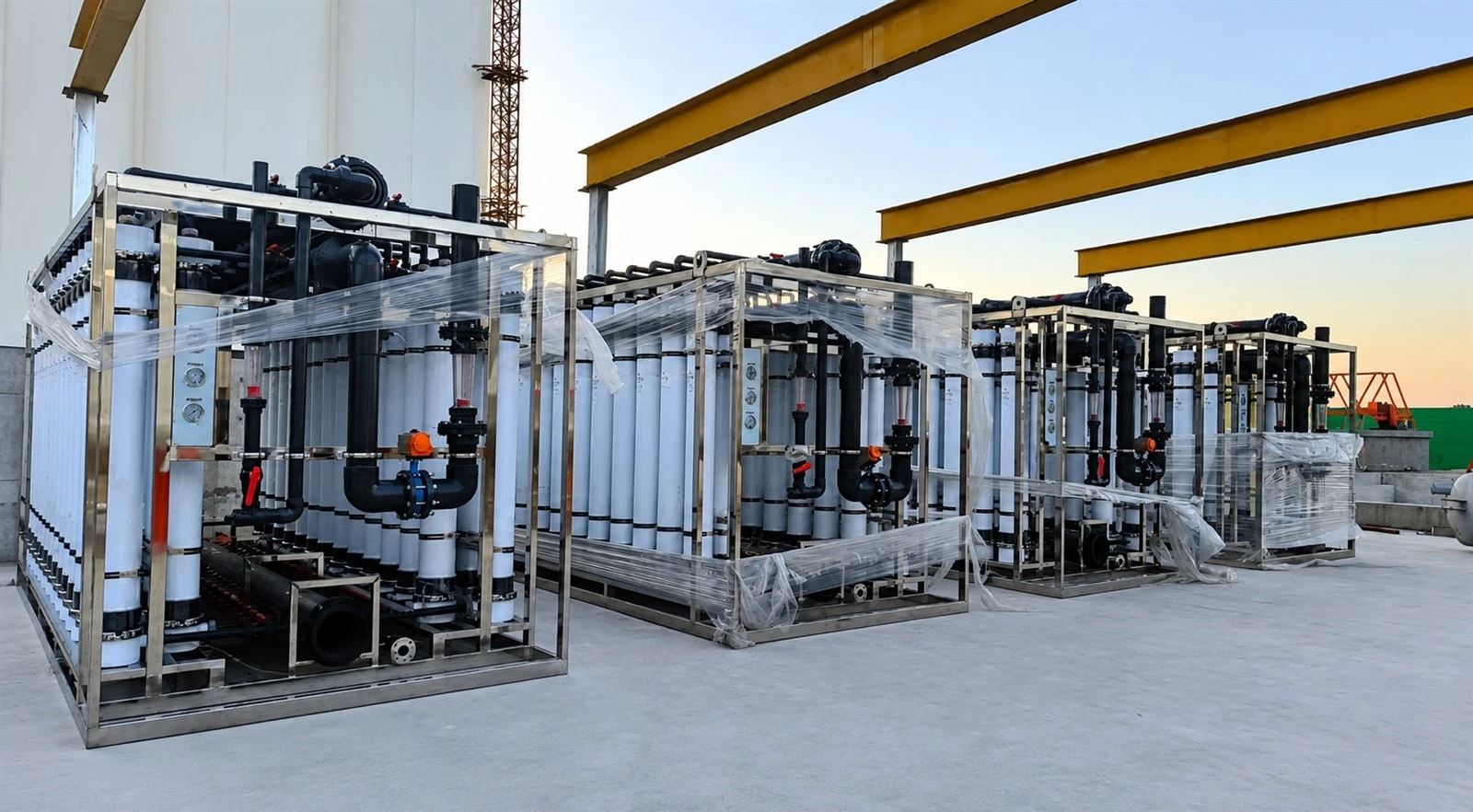

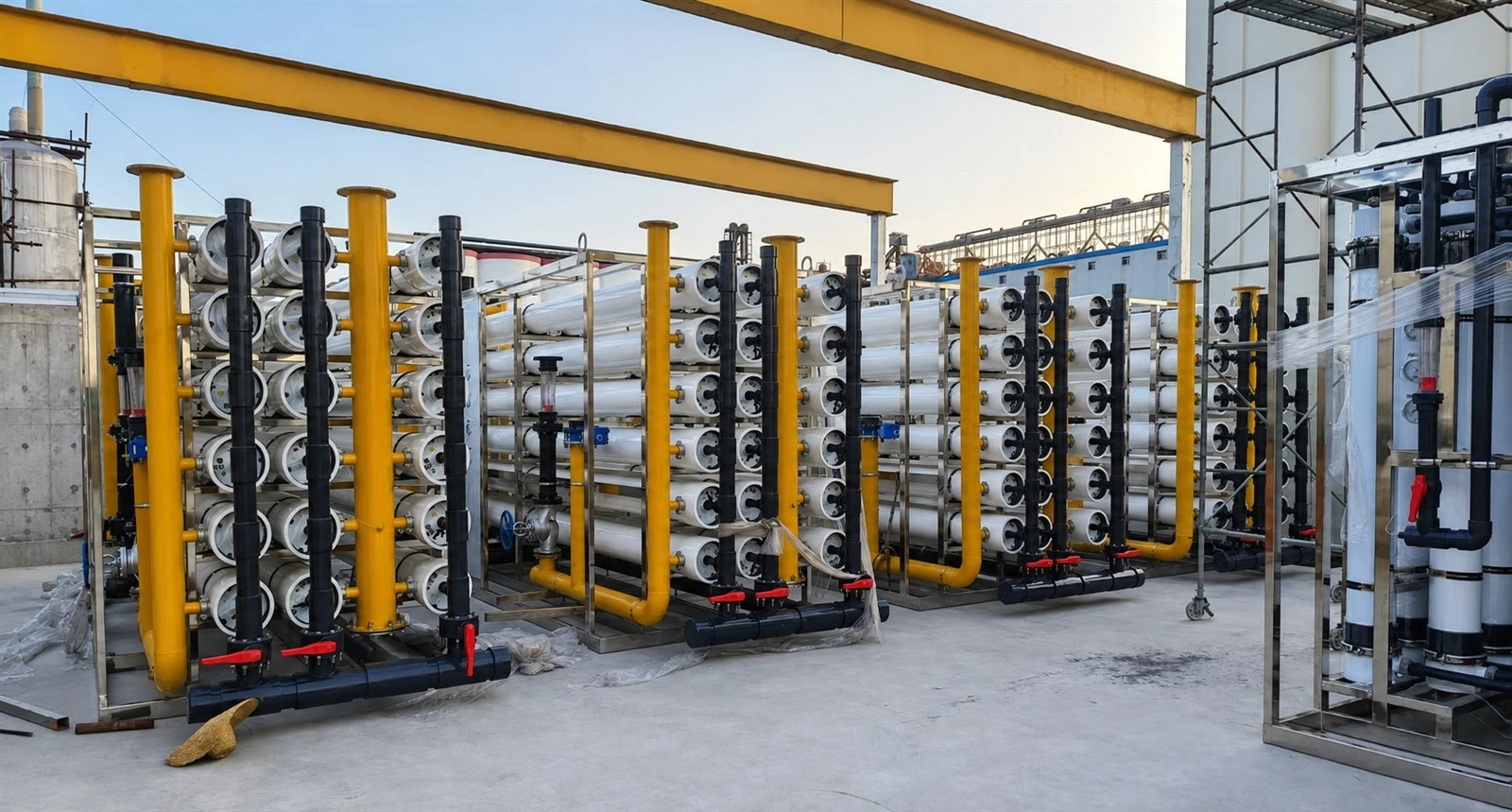

This industrial water reuse project, located at a large-scale malt production facility, utilizes 216 UFHM-2880 ultrafiltration membrane modules and 432 LRHM-10040 high-flux 10-inch reverse osmosis membrane elements. The system employs a parallel configuration of multiple units to ensure stable and efficient operation, maximizing water recovery while minimizing wastewater discharge; the reclaimed water is used for cooling tower make-up, equipment cleaning, utility operations, and landscape irrigation.
An automated PLC control system ensures long-term operational reliability, demonstrating the successful large-scale application of HUAMO's industrial-grade ultrafiltration and reverse osmosis membrane technologies in wastewater reuse projects.
