Fujian Huamo Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of laboratory pure water edi system in China. If you're going to wholesale bulk laboratory pure water edi system made in China, welcome to get catalog and price list from our factory. All custom made products are with high quality and competitive price. Also, OEM service is available.
Product Details

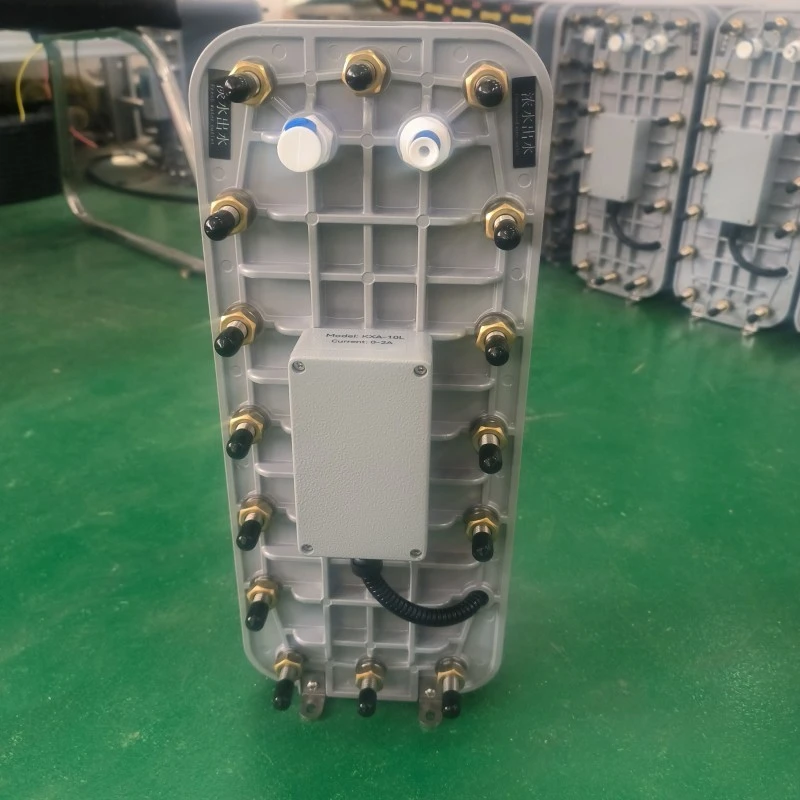

Laboratory pure water EDI system is designed for low-flow laboratory environments ranging from 50 L/H to 300 L/H, utilizing a constant DC current to remove ions from feed streams while splitting water molecules into regenerative components to drive continuous demineralization without chemical intervention or frequent cartridge replacement cycles. This specific laboratory pure water EDI system incorporates optimized ion-exchange resins to target weakly ionized, weakly bound species like silica and boron, keeping dissolved silica concentrations consistently below detection limits to provide a reliable baseline for high-sensitivity analytical instruments such as HPLC and ICP-MS. The mechanical enclosure minimizes space requirements for flexible bench or wall mounting, and the core membrane and resin assembly maintains rated purification levels for approximately 4 years under proper pre-treatment conditions.
Product Specifications
|
Parameter |
KLX-50L |
KLX-100L |
KLX-150L |
KLX-200L |
KLX-250L |
KLX-300L |
|
Module Flow (L/H) |
50 |
100 |
150 |
200 |
250 |
300 |
|
Recovery Rate (%) |
75-85% |
75-85% |
75-85% |
75-85% |
75-85% |
75-85% |
|
Product Stream Adjust (L/H) |
50 |
100 |
150 |
200 |
250 |
300 |
|
Concentrate Stream Adjust (L/H) |
10 |
20 |
30 |
40 |
50 |
60 |
|
Operating Current (A) |
0-2 |
0-2 |
0-2 |
0-2 |
0-2 |
0-2 |
|
Feed Water Source |
RO Permeate / Product Water (Two-Stage RO Recommended) |
|||||
|
Feed Water Conductivity (µS/cm) |
1-10 (Maximum Entry ≤ 25) |
|||||
|
Feed Water Temperature (°C) |
5 - 35 (Optimal Operating Performance at 25°C) |
|||||
|
Product Water Resistivity (MΩ·cm) |
10 - 18.2 |
|||||
Technical Advantages & Brand Capabilities
Why Partner With Our Enterprise?
1. Single-Source Technical Engineering Support: We supply comprehensive engineering packages from initially sizing lab loops to structural alignment and remote PLC troubleshooting.
2. Targeted Component Restoration & Diagnostic Services for laboratory pure water EDI system: Our service technicians diagnose third-party laboratory cells experiencing organic fouling or carbon dioxide loading, providing recovery pickling options to extend active usage.
3. Rigid Quality Control Protocols: Every assembly undergoes automated hydraulic pressure testing and electrical isolation verification before shipping.
Frequently Asked Questions (FAQ)
Q1: Can this unit handle raw tap water directly?
A1: No. It requires a pre-treatment system, such as double-pass reverse osmosis, to lower inlet conductivity below 10 µS/cm.
Q2: Does the system reject dissolved carbon dioxide?
A2: Dissolved CO2 acts as an ambient ionic load. High inlet levels drop the final resistivity, so upstream degasification is recommended.
Q3: What indicates that chemical cleaning is required?
A3: A 15% drop in product flow or a corresponding increase in pressure differential indicates the need for chemical scaling removal.
