Fujian Huamo Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of edi system for hospital water in China. If you're going to wholesale bulk edi system for hospital water made in China, welcome to get catalog and price list from our factory. All custom made products are with high quality and competitive price. Also, OEM service is available.
Product Details

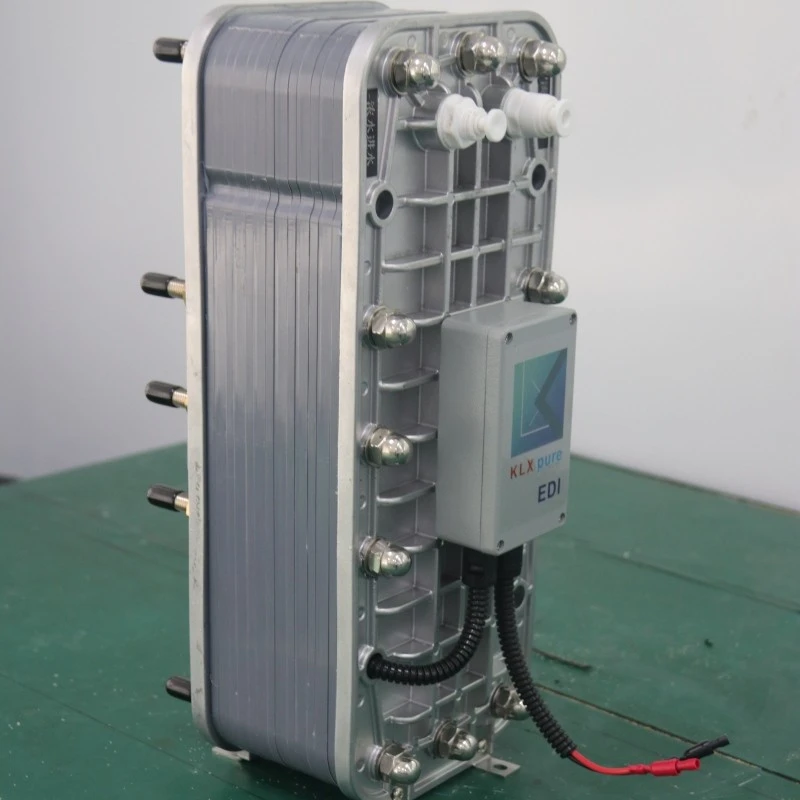

EDI system for hospital water utilizes continuous flow dynamics and internal channels designed to prevent water stagnation, suppressing microbial colonization while using an electric field to continuously remove mineral ions across internal resin layers. Engineered to meet low-flow clinical specifications from 50 L/H to 300 L/H for seamless integration into medical diagnostic loops, this specialized EDI system for hospital water reliably produces high-purity water within a resistivity range of 10-18.2 MΩ·cm to comply with international medical, analyzer, and sterile wash criteria. The fluid pathways feature robust material compatibility to handle regular low-temperature maintenance and non-chemical sanitization procedures, preventing biofilm development and ensuring high-quality internal components deliver a dependable service life of approximately 4 years under compliant reverse osmosis pre-treatment conditions.
Product Specifications
|
Parameter |
KLX-50L |
KLX-100L |
KLX-150L |
KLX-200L |
KLX-250L |
KLX-300L |
|
Module Flow (L/H) |
50 |
100 |
150 |
200 |
250 |
300 |
|
Recovery Rate (%) |
75-85% |
75-85% |
75-85% |
75-85% |
75-85% |
75-85% |
|
Product Stream Adjust (L/H) |
50 |
100 |
150 |
200 |
250 |
300 |
|
Concentrate Stream Adjust (L/H) |
10 |
20 |
30 |
40 |
50 |
60 |
|
Operating Current (A) |
0-2 |
0-2 |
0-2 |
0-2 |
0-2 |
0-2 |
|
Feed Water Source |
RO Permeate / Product Water (Two-Stage RO Recommended) |
|||||
|
Feed Water Conductivity (µS/cm) |
1-10 (Maximum Entry ≤ 25) |
|||||
|
Feed Water Temperature (°C) |
5 - 35 (Optimal Operating Performance at 25°C) |
|||||
|
Product Water Resistivity (MΩ·cm) |
10 - 18.2 |
|||||
Technical Advantages & Brand Capabilities
Why Partner With Our Enterprise?
1. Single-Source Technical Engineering Support: We assist hospital facilities with complete engineering integration, including piping schematics, water loop calculations, and automated monitoring systems.
2. Targeted Component Restoration & Diagnostic Services: Our engineers evaluate medical water components experiencing performance loss due to scaling or organic bio-fouling, providing clean-in-place (CIP) protocols to restore design parameters.
3. Rigid Quality Control Protocols: Every EDI system for hospital water undergoes strict testing for pressure boundaries and electrical baseline stability before final approval and shipment.
Frequently Asked Questions (FAQ)
Q1: Does this system remove endotoxins and bacteria?
A1: The module significantly reduces micro-organisms through its electric field and membrane layers. However, downstream ultrafiltration or UV disinfection is required to guarantee endotoxin compliance for clinical applications.
Q2: What pre-treatment is required for medical installations?
A2: A double-pass reverse osmosis system is highly recommended to lower feed water conductivity to 1-10 µS/cm and extend module life.
Q3: How much wastewater does this system produce?
A3: The water recovery rate ranges from 75% to 85%, meaning only 15% to 25% of the feed water is discharged as a concentrate stream.
