Fujian Huamo Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of high performance edi module in China. If you're going to wholesale bulk high performance edi module made in China, welcome to get catalog and price list from our factory. All custom made products are with high quality and competitive price. Also, OEM service is available.
Product Details

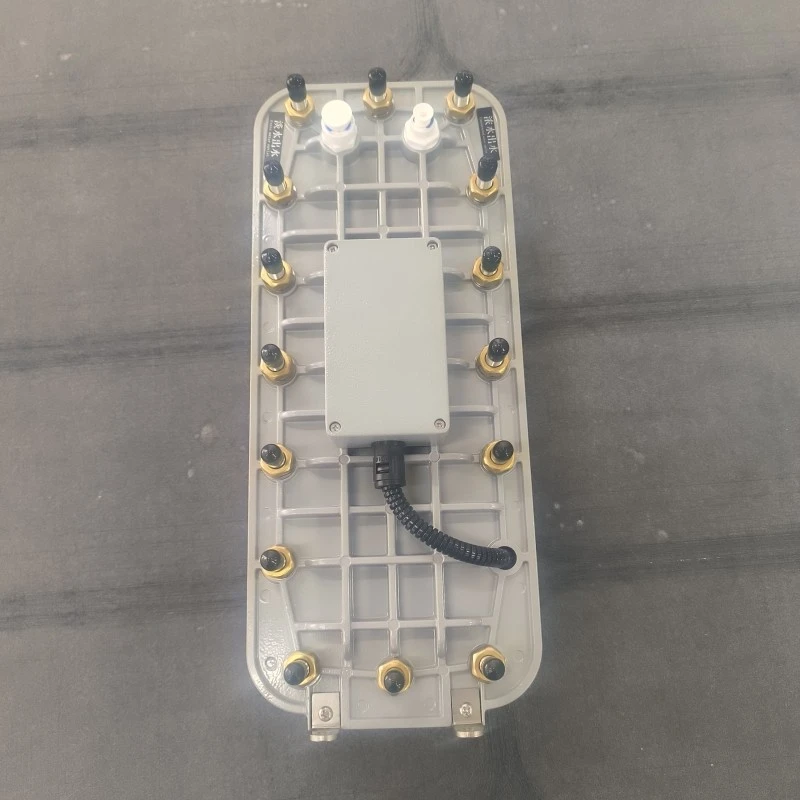

High performance EDI module is engineered with optimized internal fluid dynamics to ensure an even current density across the resin beds, maximizing salt rejection and supporting continuous on-line regeneration. Designed for small-scale installations delivering a precision-scaled flow of 50 L/H to 300 L/H, this high performance EDI module features a low-impedance power consumption profile that minimizes internal heat generation.The system incorporates a robust mechanical sealing framework utilizing heavy-duty compression plates and high-tensile tie rods to ensure zero external fluid leakage under typical operating pressures, providing a dependable hardware baseline that delivers a typical operational lifecycle of approximately 4 years under compliant feed water conditions.
Product Specifications
|
Parameter |
KLX-50L |
KLX-100L |
KLX-150L |
KLX-200L |
KLX-250L |
KLX-300L |
|
Module Flow (L/H) |
50 |
100 |
150 |
200 |
250 |
300 |
|
Recovery Rate (%) |
75-85% |
75-85% |
75-85% |
75-85% |
75-85% |
75-85% |
|
Product Stream Adjust (L/H) |
50 |
100 |
150 |
200 |
250 |
300 |
|
Concentrate Stream Adjust (L/H) |
10 |
20 |
30 |
40 |
50 |
60 |
|
Operating Current (A) |
0-2 |
0-2 |
0-2 |
0-2 |
0-2 |
0-2 |
|
Feed Water Source |
RO Permeate / Product Water (Two-Stage RO Recommended) |
|||||
|
Feed Water Conductivity (µS/cm) |
1-10 (Maximum Entry ≤ 25) |
|||||
|
Feed Water Temperature (°C) |
5 - 35 (Optimal Operating Performance at 25°C) |
|||||
|
Product Water Resistivity (MΩ·cm) |
10 - 18.2 |
|||||
Technical Advantages & Brand Capabilities
Why Partner With Our Enterprise?
1. Single-Source Technical Engineering Support: We provide complete technical packages, including matching electrical control panels, PLC programming blocks, and hydraulic piping calculations.
2. Targeted Component Restoration & Diagnostic Services: Our service facility diagnoses internal short circuits and mineral scaling in industrial cells, providing re-shimming and resin repacking options to restore factory specifications.
3. Rigid Quality Control Protocols: Every high performance EDI module is subjected to severe pressure testing and multi-hour electrical monitoring prior to final dispatch.
Frequently Asked Questions (FAQ)
Q1: What are the primary requirements for the feed water?
A1: The module requires an inlet conductivity of 1-10 µS/cm, a total hardness under 0.5 ppm (CaCO3 equivalent), and zero free chlorine.
Q2: How does the system handle silica?
A2: It provides excellent silica removal efficiency, typically exceeding 95-99% when operated within recommended current ranges.
Q3: What happens if the water flow stops while the current is on?
A3: Stagnant water will overheat due to the electrical current, leading to permanent structural damage. Flow switches must be interlocked with the power supply.
