Fujian Huamo Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of 1500 lph upvc ro edi system in China. If you're going to wholesale bulk 1500 lph upvc ro edi system made in China, welcome to get catalog and price list from our factory. All custom made products are with high quality and competitive price. Also, OEM service is available.
Product Details

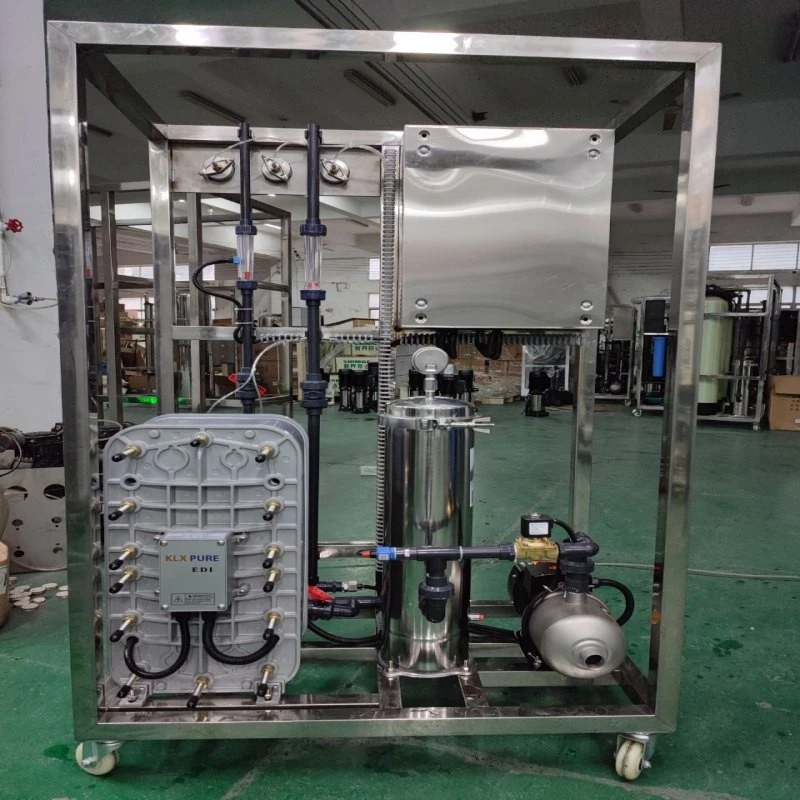

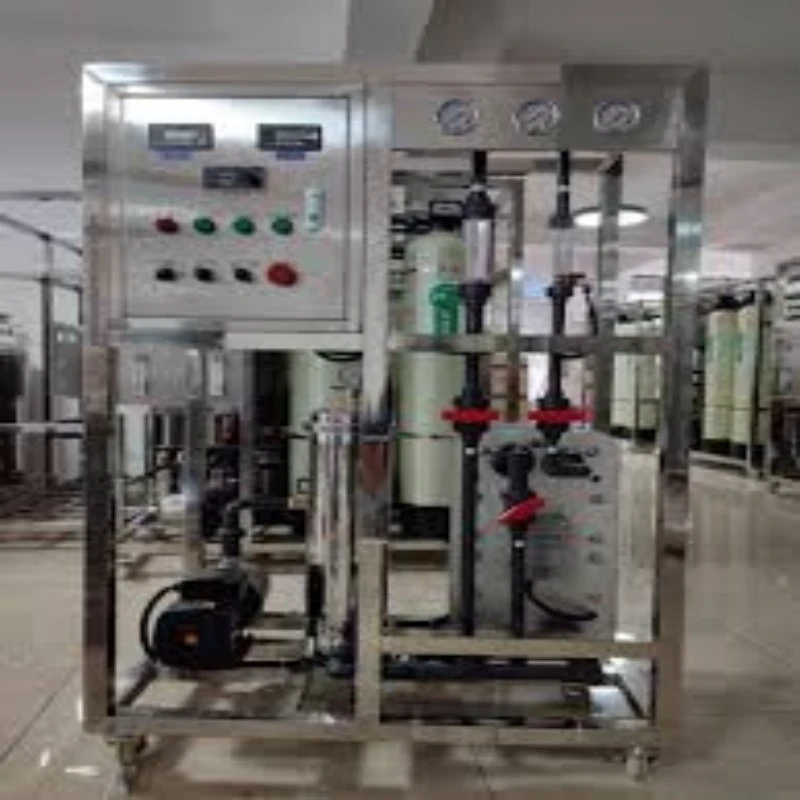

The 1500 LPH UPVC RO EDI system is an industrial high purity water production unit that combines reverse osmosis (RO) membrane separation technology with electrodeionization (EDI) purification. feed conditioning – Raw water from a 2 m³ tank passes through three UPVC vessels: sand filter, activated carbon, and cation softener. Each vessel has an automatic backwash valve. A brine tank supports regeneration. A cartridge security filter protects the RO.
Two‑pass RO – First pass: a high‑pressure pump pushes feed through three TF‑8040 membranes in UPVC housings. Second pass: a second pump pushes first pass permeate through two TF‑8040 membranes. Second pass concentrate returns to first pass feed. Conductivity is monitored at three points.
EDI finishing – Second pass permeate goes through a pleated 0.1 µm filter then two EDI modules. DC power removes ions – no chemicals. Resistivity is monitored online. A UV sterilizer provides microbiological control.
Automation and storage – A PLC with 7‑inch touch screen controls pumps and valves. Product water is stored in 4T and 2T aseptic tanks. All interconnecting pipes are UPVC Schedule 80.
Product Specifications
Compared with full stainless steel construction, this configuration reduces equipment cost while maintaining compatibility with standard industrial water treatment applications.
|
Parameter |
Value |
|
Product flow rate |
1500 L/h |
|
Product resistivity |
≥15 MΩ·cm (typ. 18) |
|
System recovery |
70–75% |
|
Feed water requirement |
SDI <5, turbidity <1 NTU |
|
Raw water tank |
2 m³ (PE or SS304 optional) |
|
Sand vessel (UPVC) |
Ø900×1800 mm, 1.2 t quartz sand |
|
Carbon vessel (UPVC) |
Ø900×1800 mm, 300 kg coconut shell AC |
|
Softener vessel (UPVC) |
Ø900×1800 mm, 600 L 001×7 resin |
|
Auto valves |
RUNXIN N75A1 (×2), N74A3 |
|
Brine tank |
400 L |
|
RO feed security filter |
UPVC, 5×40″ PP 5µm |
|
1st pass RO pump |
3.0 kW, SHIMGE |
|
1st pass RO membranes |
3 × TF-8040 (TANFO) |
|
1st pass RO housings |
UPVC 8040 (2 vessels) |
|
2nd pass RO pump |
2.2 kW, SHIMGE |
|
2nd pass RO membranes |
2 × TF-8040 (TANFO) |
|
2nd pass RO housing |
UPVC 8040 (1 vessel) |
|
RO flowmeters (LZS-40) |
4 units |
|
RO pressure gauges (0-25 kg/cm²) |
4 units |
|
RO pressure gauges (0-6 kg/cm²) |
2 units |
|
Pressure switches (P06) |
3 units |
|
Conductivity meters (CCT-3320V) |
3 units |
|
Solenoid valves (DN40) |
3 units |
|
EDI feed pump |
1.1 kW, SHIMGE |
|
EDI security filter |
5×20″ 0.1 µm pleated |
|
EDI modules |
2 × KXA-75 (Clayson) |
|
EDI flow meters |
3 units |
|
EDI pressure gauges (0-0.6 MPa) |
3 units |
|
Resistivity meter (RCT-3220) |
1 unit |
|
UV sterilizer |
1.5 TPH |
|
Product water tanks |
4T + 2T (SS304 or PE) |
|
Control system |
PLC + 7″ touch screen |
|
Piping |
UPVC Schedule 80 DN50 |
|
Power supply |
380V / 50Hz / 3-phase |
Advantages
Designed for Flexible Industrial Applications
The system configuration can be adjusted according to different water sources and production requirements.
Possible customization options include:
- Higher production capacity
- Different storage tank volumes
- Additional sterilization equipment
- Online TOC monitoring
- Customized electrical standards
The modular design allows the industrial RO EDI system to be integrated into different production environments.
Applications
The 1500 LPH UPVC RO EDI system is commonly used in:
Electronics Manufacturing
- PCB cleaning
- Semiconductor process water
- Precision component washing
Laboratory and Research Facilities
- Analytical instrument water
- Laboratory reagent preparation
Laboratory and Research Facilities
- Chemical mixing water
- Process dilution water
Pharmaceutical Related Processes
- Purified water pretreatment
- Equipment cleaning water
Industrial Manufacturing
- High purity process water supply
- Precision cleaning systems
FAQ
1. What water quality is required for feeding the 1500 LPH UPVC RO EDI system?
Recommended feed water conditions:
● SDI <5
● Turbidity <1 NTU
● Iron <0.1 ppm
● Chlorine <0.1 ppm
Softener capacity can handle hardness levels up to approximately 300 ppm depending on operating conditions.
2. How often should the consumable components be replaced?
Typical replacement intervals:
● RO membranes: 2–4 years
● EDI modules: 5–8 years
● UV lamp: 8000–9000 hours
● Activated carbon: 2–3 years
Actual replacement frequency depends on feed water quality and operating conditions.
3. Can UPVC materials withstand RO operating pressure?
Yes. The UPVC Schedule 80 piping system is designed for industrial pressure applications. Typical RO operating pressure is approximately 0.8–1.2 MPa depending on feed water characteristics.
4. Can this RO EDI water purification system be expanded?
Yes. The system can be upgraded by increasing membrane quantity, pump capacity, and EDI modules. PLC programming supports future expansion.
5. Do you provide installation documents?
Yes. Engineering documents include:
● P&ID diagram
● Electrical drawings
● Operation manual
● Equipment layout drawing
