Product Details
The 2000 LPH stainless steel RO EDI system is an integrated high purity water production system designed for industrial applications requiring continuous and stable ultrapure water supply. A 2‑ton SS304 raw water tank feeds three vertical vessels (sand, carbon, softener). Each vessel is SS304 with automatic backwash valves. Quartz sand, coconut shell carbon, and cation resin are pre‑loaded. A brine tank supports regeneration.
Two‑stage RO – First stage uses four TF‑8040 membranes driven by a 4 kW pump. Second stage uses two TF‑8040 membranes driven by a 2.2 kW pump. Concentrate from the second stage returns to the first stage feed. A 5‑micron security filter protects the RO membranes.

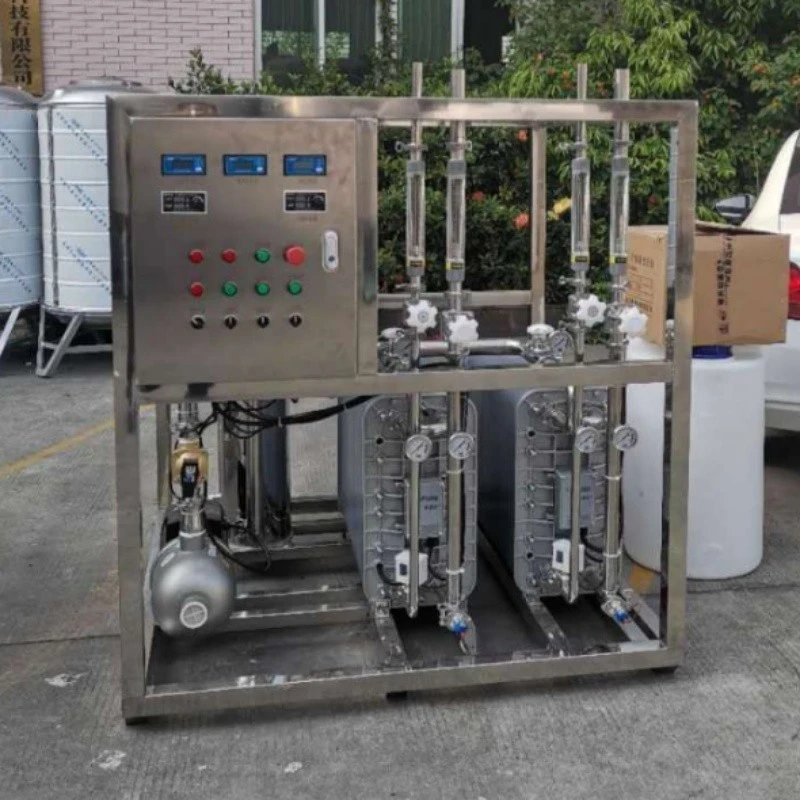

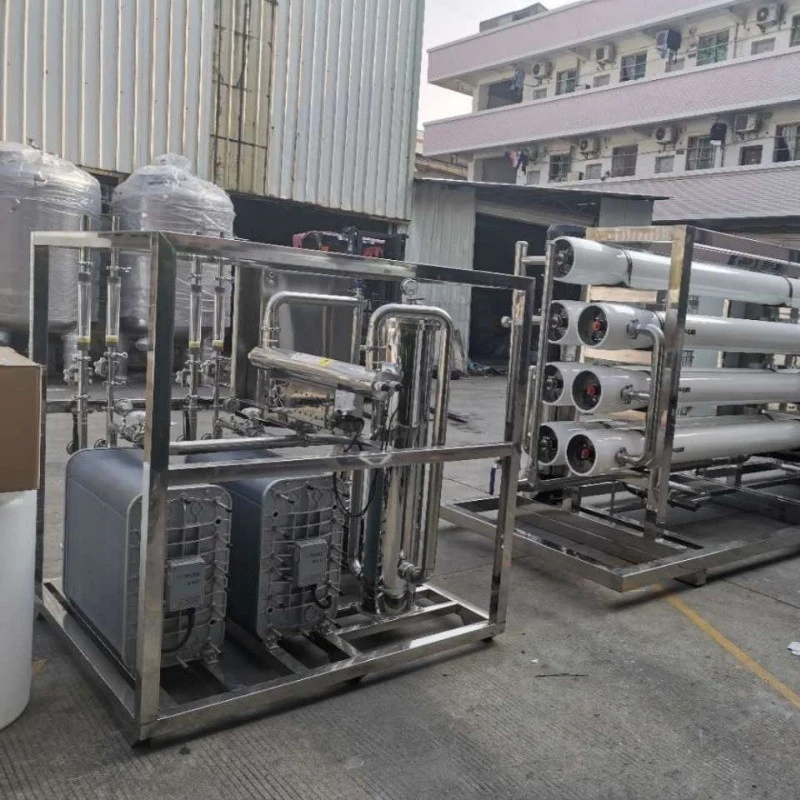

EDI polishing – After RO, water passes through a precision filter then two EDI modules (1 m³/h each). DC current removes residual ions without chemical regeneration.
Control – A PLC with 7‑inch touch screen controls pumps, valves, and interlocks. The display shows a dynamic process flow. Conductivity is monitored at three points. Pressure switches prevent dry running.
Storage – Treated water is stored in a 5‑ton SS304 tank and two 3‑ton SS304 aseptic tanks. An EDI booster pump supplies the distribution loop.
Product Specifications
The RO section provides the primary desalination process of the 2000 LPH stainless steel RO EDI system.
|
Parameter |
Value |
|
Product flow rate |
2000 L/h |
|
Product resistivity |
≥15 MΩ·cm (typ. 18) |
|
Recovery (RO+EDI) |
70–75% |
|
Feed requirement |
SDI <5, turbidity <1 NTU |
|
Raw water tank |
2 m³, SS304 |
|
Pre-treatment vessels |
3 × SS304, Ø1000×2200 mm |
|
– Sand media |
2 tons, 0.4–20 mm |
|
– Carbon media |
500 kg, coconut shell |
|
– Resin volume |
1000 L, 001×7 |
|
Auto valves |
RUNXIN N75A1 (×2), N74A3 |
|
Security filter |
SS304, 10 × 40″ PP 5µm |
|
1st RO pump |
4 kW, SHIMGE |
|
2nd RO pump |
2.2 kW, SHIMGE |
|
RO membranes |
4+2 × TF-8040 (TANFO) |
|
RO housings |
8040 type, HUAMO |
|
EDI feed filter |
5 × 20″ PP 5µm |
|
EDI modules |
2 × 1 m³/h |
|
Product tanks |
5T + 2×3T, SS304 aseptic |
|
Control |
PLC + 7″ touch screen |
|
Conductivity meters |
3 units |
|
Pressure switches |
3 × P06 |
|
Piping |
SS304 DN50 |
Advantages
Integrated Control for Easier System Management
The PLC-based control system combines multiple operating functions into one interface.
Operators can monitor:
- Real-time conductivity values
- Pump conditions
- Valve operation
- System alarms
Password-protected settings prevent unauthorized parameter changes and improve operational safety.
Remote communication options such as Modbus RTU are available for integration into factory management systems.
Expandable Design for Industrial Projects
The 2000 LPH stainless steel RO EDI system can be customized according to different production requirements.
Available modifications include:
- Increased water production capacity
- Additional monitoring instruments
- Customized tank volumes
- Different electrical standards
- Automated data communication systems
The modular design allows future upgrades without replacing the complete purification platform.
Applications
The system is suitable for:
Pharmaceutical Industry
- Process water preparation
- Equipment cleaning water
- High purity water production
Electronics Manufacturing
- Semiconductor cleaning
- PCB production processes
- Precision component rinsing
Laboratory Facilities
- Instrument water supply
- Analytical testing applications
Chemical Industry
- Chemical solution preparation
- Process water supply
Industrial Manufacturing
- Continuous high purity water requirements
- Automated production lines
FAQ
1. What feed water conditions are required?
Recommended feed water parameters:
● SDI <5
● Turbidity <1 NTU
● Iron <0.1 ppm
● Chlorine <0.1 ppm
The softening system can handle hardness levels up to approximately 300 ppm depending on regeneration frequency.
2. What is the replacement period of consumable components?
Typical service life:
● Sand media: 5–7 years
● Activated carbon: 2–3 years
● Ion exchange resin: 5–8 years
● RO membranes: 2–4 years
● EDI modules: 5–8 years
Actual lifespan depends on feed water quality and operating conditions.
3. Why choose stainless steel construction?
SS304 construction provides:
● Better corrosion resistance
● Improved sanitary performance
● Easier cleaning
● Higher compatibility with demanding industrial environments
It is commonly selected for applications with strict hygiene and material requirements.
