Fujian Huamo Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of 4040 anti fouling ro membrane in China. If you're going to wholesale bulk 4040 anti fouling ro membrane made in China, welcome to get catalog and price list from our factory. All custom made products are with high quality and competitive price. Also, OEM service is available.
Product Details

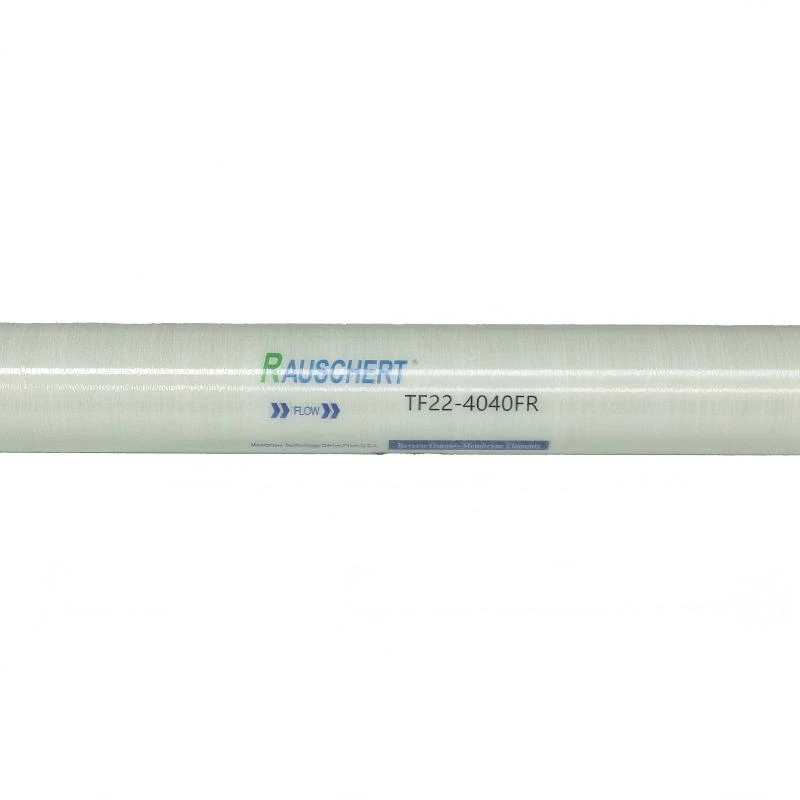

The 4040 Anti Fouling RO Membrane element is engineered to deliver high-efficiency desalination while mitigating the operational challenges associated with biological, organic, and colloidal fouling. Built upon an advanced polyamide composite chemistry, the element maintains an optimal balance between water productivity and solute rejection under demanding feed conditions. Its robust physical construction ensures long-term mechanical integrity, making it a reliable component for plant operators seeking to optimize chemical consumption and extend membrane service life in commercial and industrial water treatment installations.
Core Features
- Fouling-Resistant Surface The membrane chemistry reduces the adhesion of organic matter, colloids, and suspended solids. This extends operational run times between cleanings and improves clean-in-place (CIP) efficiency.
- Consistent Water Quality With a 99.3% stabilized salt rejection (99.0% minimum), the element ensures uniform, reliable permeate quality under standard operating conditions.
- Dependable Throughput An active membrane area of 78 ft² (7.2 m²) delivers a 2250 GPD capacity, maintaining steady production rates in commercial and industrial RO systems.
Technical Specifications
Performance & Physical Properties
|
Parameter |
Value |
|
Model |
FR4040 |
|
Active Membrane Area |
78 ft² (7.2 m²) |
|
Stabilized Salt Rejection |
99.3% |
|
Minimum Salt Rejection |
99.0% |
|
Permeate Flow Rate |
2250 GPD (8.7 m³/d) |
|
Length |
1,016 mm (40 in.) |
|
Diameter |
201 mm (7.95 in.) |
|
Weight |
3.38 kg |
Standard Test Conditions
|
Test Parameter |
Value |
|
Feed Water Pressure |
1.03 MPa (150 psi) |
|
Feed Water Temperature |
25°C (77°F) |
|
Feed Water Concentration |
1,500 ppm NaCl |
|
Feed Water pH |
8 |
|
Permeate Recovery |
15% |
Operating Limits
|
Parameter |
Value / Range |
|
Maximum Operating Pressure |
41 bar (600 psi) |
|
Maximum Operating Temperature |
45°C (113°F) |
|
Maximum Pressure Drop |
1.0 bar (15 psi) |
|
pH Range (Continuous Operation) |
2 – 11 |
|
pH Range (Chemical Cleaning / CIP) |
1 – 13 |
|
Maximum Feed SDI15 |
5.0 |
|
Free Chlorine Tolerance |
< 0.1 ppm |
Technical Notes:
●Permeate flow for individual elements may vary by ±15%.
●Active membrane area may vary by ±4%.
●Optimal salt rejection is typically achieved after 24 to 48 hours of continuous operation.
●Actual field performance depends on local feed water quality, system configuration, pressure, temperature, and recovery rates.
Applications
The 4040 Anti Fouling RO Membrane element is used across various sectors requiring robust desalination and fouling control:
- Commercial and industrial RO systems
- Municipal water filtration and reuse projects
- Surface water and brackish groundwater purification
- Industrial process water and boiler feed preparation
- Drinking water purification systems
- Food and beverage water treatment
Frequently Asked Questions (FAQ)
Q1: How does the anti-fouling feature work?
A: The membrane surface is treated to modify its hydrophobicity and charge, which prevents organic matter, biological material, and suspended solids from adhering to the surface.
Q2: What feed water sources are suitable for this element?
A: It is ideal for municipal tap water, surface water (rivers/lakes), pretreated groundwater, and reclaimed wastewater where organic or colloidal fouling is a concern.
Q3: Is the FR4040 compatible with standard 4040 pressure vessels?
A: Yes. The element follows industry-standard 4040 dimensions and fits standard 4-inch commercial RO housings.
Q4: Can this membrane withstand aggressive chemical cleaning?
A: Yes. It tolerates a wide pH range (1–13) during CIP procedures, allowing for effective acid washes to remove scale and alkaline washes to remove organics.
Q5: How often should the membrane elements be cleaned?
A: Cleaning frequency depends entirely on the feed water quality and pretreatment efficiency. Operators should monitor system pressure drop and permeate flow; cleaning is recommended when normalized flow drops by 10% or differential pressure increases by 15%.
Q6: Do you offer OEM and private label options?
A: Yes. Custom labeling, private branding, and OEM manufacturing services are available for distributors, system integrators, and equipment manufacturers.
