Product Details

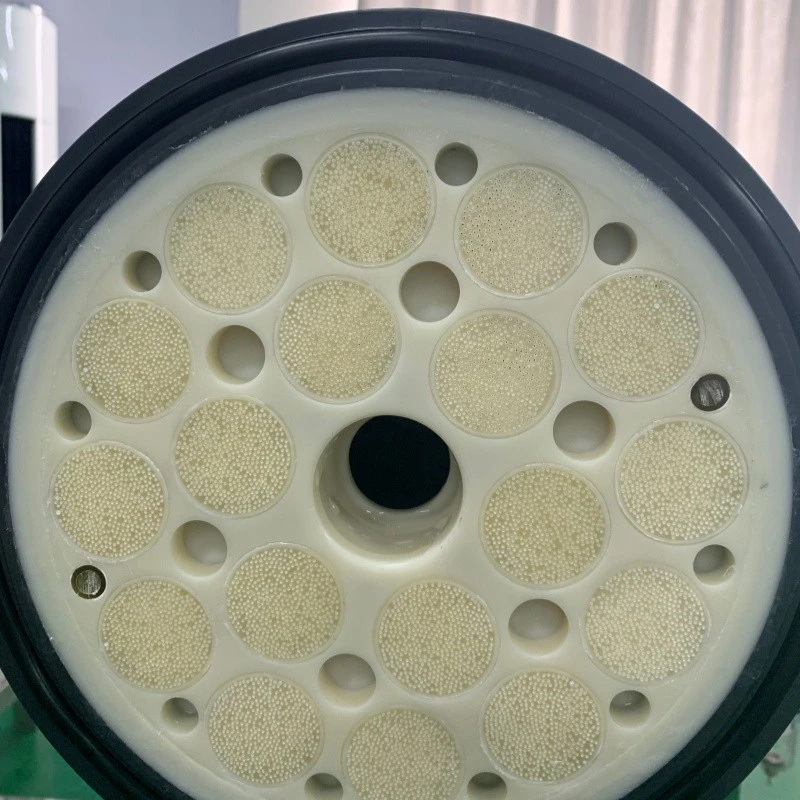

The industrial PVDF hollow fiber membrane UF2880 contains thousands of reinforced PVDF hollow fibers potted in a UPVC housing with epoxy resin. Filtration occurs from outside to inside. Suspended solids, bacteria, and colloids are retained on the fiber surface. Permeate collects inside the fiber lumen and exits through the end ports.
The industrial PVDF hollow fiber membrane operates in either cross‑flow or dead‑end mode. Routine backwash with permeate at 0.25 MPa is performed every 30–60 minutes to remove accumulated solids from the fiber surface. An air flush can be applied during backwash to enhance cleaning efficiency. PVDF material provides high mechanical strength (≥200 N longitudinal strength) and excellent resistance to chlorine and a wide pH range, enabling aggressive chemical cleaning when fouling occurs.
Applications include:
• Reverse osmosis pre‑treatment (reducing SDI to ≤3.0)
• Municipal and industrial wastewater tertiary filtration
• Surface water treatment for drinking or process use
• Industrial process water recycling
For immersed MBR applications, HUAMO recommends the HM‑IM series. The UF2880 is intended for pressurized vessel operation.
Product Specifications
|
Parameter |
Value |
|
Model |
UF2860/UF2880 |
|
Membrane material |
PVDF |
|
Filtration mode |
Outside‑in |
|
Nominal pore size |
0.03 µm |
|
Membrane area |
51 m²/77 m² |
|
Fiber ID / OD |
0.7 mm / 1.3 mm |
|
Housing material |
UPVC |
|
Max. operating pressure (20 °C) |
0.62 MPa (94 psi) |
|
Suggested operating pressure |
0.3 MPa (43 psi) |
|
Max. TMP |
0.2 MPa (30 psi) |
|
Backwash pressure (suggested) |
0.25 MPa (36 psi) |
|
Air flush rate |
12–15 m³/h |
|
Operating temperature |
5–45 °C |
|
pH range |
2–11 |
|
Max. feed turbidity |
300 NTU (short‑term) |
|
Product water turbidity |
≤0.2 NTU |
|
Product water SDI |
≤3.0 |
|
Bacteria removal |
≥6 log |
Why Choose Our Products
Product Advantages
• Reinforced industrial PVDF hollow fiber membrane – High tensile strength (≥200 N) resists breakage during backwash and air scouring. Service life typically 3–5 years.
• Chemical tolerance – Withstands chlorine up to 200 mg/L and cleaning pH 2–11. Effective CIP for organic and inorganic fouling.
• Consistent permeate quality – 0.03 µm pore size produces SDI ≤3.0 and turbidity ≤0.2 NTU, meeting RO feed requirements.
• High removal rates – ≥6 log bacteria and ≥4 log virus removal for safe water reuse.
• Energy‑efficient operation – Design flux range 40–80 L/m²·h with low TMP reduces pumping energy.
Company Advantages – HUAMO GROUP
• Founded 2001 – Over 20 years in membrane manufacturing.
• 100,000 m² facility – Automated casting, potting, and testing lines.
• Global supply – Exported to North America, Europe, Southeast Asia, Africa, South America.
• Quality control – Raw material certification, 100% integrity test (pressure decay), batch traceability.
FAQ
Q1: Difference between UF2880 and UF2860?
A: UF2880 has 77 m² area; UF2860 has 55 m². UF2880 is longer (2360 mm vs 1860 mm). Both use same PVDF material and 0.03 µm pore size.
Q2: Can UF2880 be used in an immersed MBR system?
A: No. UF2880 is for pressurized vessels. For immersed MBR, use HUAMO HM‑IM series.
Q3: Recommended cleaning protocol?
A: Routine backwash: every 30–60 min with permeate at 0.25 MPa. Chemical cleaning: 0.1–0.5% NaOH + 0.1% NaClO for organic fouling; 0.5–1% citric acid for scale. CIP every 2–4 weeks.
Q4: Expected service life?
A: 3–5 years with proper pre‑treatment. Reduced by chlorine >200 mg/L, high oil/grease, or frequent aggressive cleaning.
Q5: MOQ for OEM orders?
A: Custom label/packaging: 50 modules. Standard HUAMO brand: 10 modules. Sample orders (1–2 pieces) available.
