Fujian Huamo Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of residential ulp ro membrane in China. If you're going to wholesale bulk residential ulp ro membrane made in China, welcome to get catalog and price list from our factory. All custom made products are with high quality and competitive price. Also, OEM service is available.
Product Details

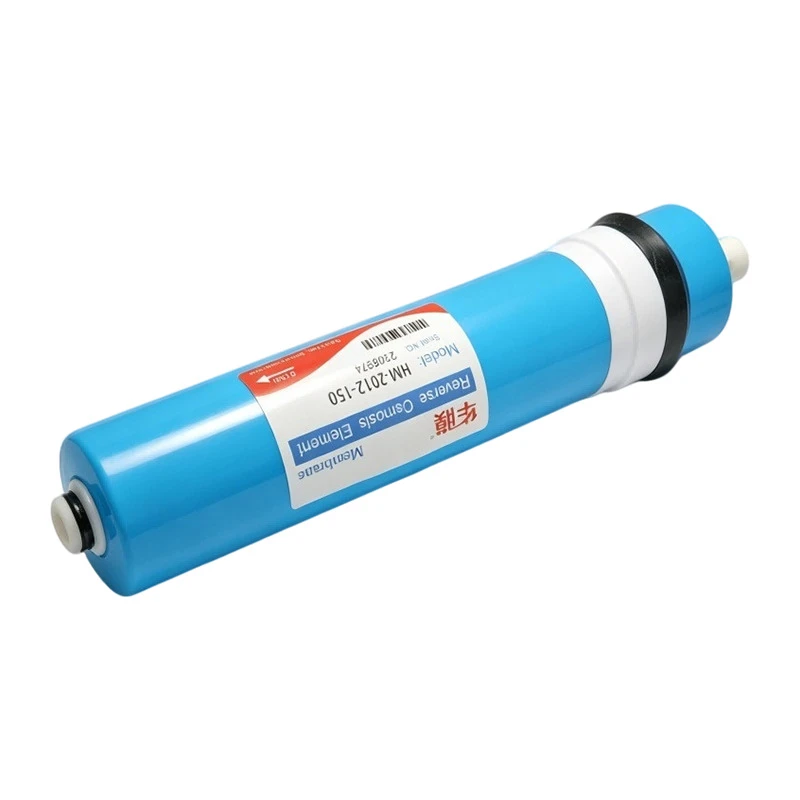

The residential ULP RO membrane uses a low‑energy polyamide composite layer that achieves stable rejection while keeping the pump workload low. Dry‑type construction means no preservative liquids – no mess, no sticky residue.
Key engineering features:
- Spiral-wound geometry – maximizes active area within a compact 1812/2012 housing.
- Wide operating pH range (3–10) – tolerates variations in tap water and well water.
- High fouling resistance – composite material lowers scaling and biofilm buildup.
Video Description
This video presents our residential ULP RO membrane production line and quality control process.
Product Specifications

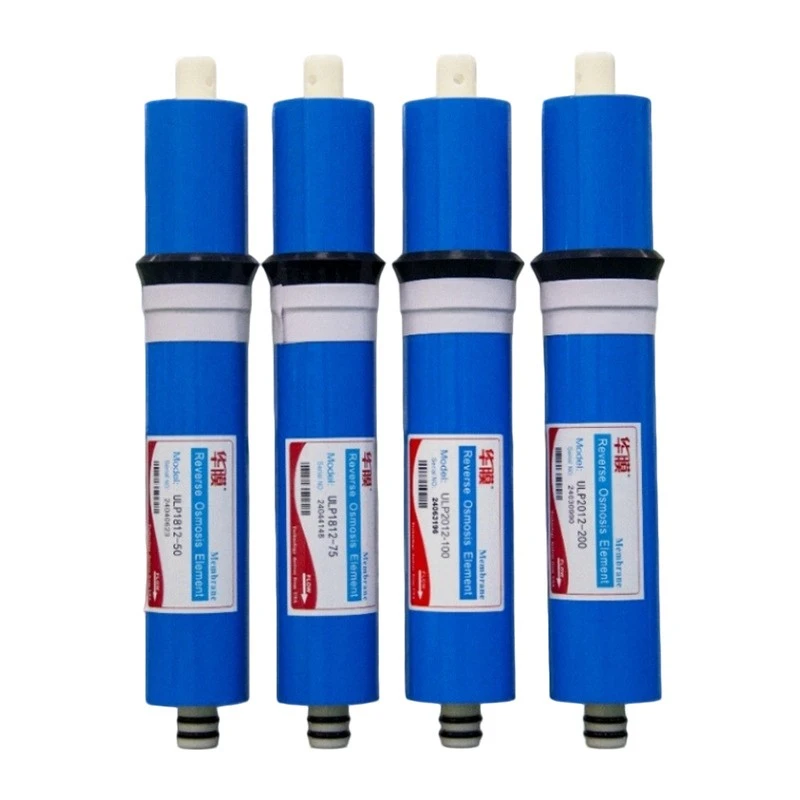

Model | Active Membrane | Average Permeate | Stable Rejection | Test Pressure() | Test Temp | Test Concentration |
ULP1812-50 | 4ft2 (0.4m2) | 50GPD | 95% | 65psi(0.45MPa) | 25℃ | 250ppm |
ULP1812-75 | 4ft2 (0.4m2) | 75GPD | 95% | 65psi(0.45MPa) | 25℃ | 250ppm |
ULP2012-100 | 5ft2 (0.5m2) | 100GPD | 95% | 65psi(0.45MPa) | 25℃ | 250ppm |
ULP2012-125 | 5ft2 (0.5m2) | 125GPD | 95% | 65psi(0.45MPa) | 25℃ | 250ppm |
ULP2812-200 | 10ft2 (1m2) | 200GPD | 95% | 100psi(0.69MPa) | 25℃ | 500ppm |
ULP3012-300 | 14ft2 (1.4m2) | 300GPD | 95% | 100psi(0.69MPa) | 25℃ | 500ppm |
ULP3013-400 | 16ft2 (1.5m2) | 400GPD | 95% | 100psi(0.69MPa) | 25℃ | 500ppm |
Customized Models | Customized | Customized | Customized | Customized | 25℃ | Customized |
*Performance data measured under standard test conditions. Actual results may vary with feed water quality and system configuration.
Key Benefits of This Residential ULP Membrane
- Direct from the RO Membrane Element Supplier – Our 65 psi ultra-low pressure design cuts pump energy use by 20%+.
- 100% Dry Packaging – No preservative liquids, 3-year shelf life, ships safely in any climate.
- Automated Spiral Winding – Uniform leaf spacing and zero micro-leaks across all batches.
- This residential RO membrane element lets you swap 50 → 75 GPD directly, boosting output 50% without hardware changes.
- ≥95% Real-World Rejection – Tap water TDS 300 ppm → permeate below 15 ppm.
- An ideal Replacement RO Membrane – Fits all 1812/2012 housings (APEC, iSpring, Express Water, generics).
- 20% Lower CO₂ Footprint – Lighter, dry shipping reduces emissions and storage cost.
- Trusted Manufacturer for 1812 Domestic RO Membranes– Full OEM & private label from 500 units.
Applications
- Residential RO water purification systems
- Under-sink drinking water filters
- Clinic water purification devices
- Laboratory water treatment equipment
- Small-sized water purification systems
FAQ
1. What is a residential RO membrane element?
A residential RO membrane element is an ultra low pressure reverse osmosis membrane designed for household and small-scale water purification systems. It operates at lower pressure while maintaining effective salt rejection and stable water output.
2. What are the differences between 1812 and 2012 RO membranes?
The main difference is size and water production capacity. The 2012 membrane has a larger surface area, providing higher permeate flow compared to the 1812 model, while both maintain similar filtration performance.
3. What type of feed water is suitable for this RO membrane?
It is suitable for municipal water and low salinity water sources. It can also handle feed water containing certain oxidizing substances and higher microbial content.
4. Can I use this membrane with a non‑pressurized storage tank or direct‑flow (tankless) RO system?
Yes, it works with both tank and tankless systems. For tankless systems that operate at intermittent high flow, we recommend the 75 GPD or higher model to keep up with demand. The membrane's low pressure requirement (65 psi) is compatible with most tankless RO booster pumps.
