Fujian Huamo Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of nf4040 nanofiltration membrane in China. If you're going to wholesale bulk nf4040 nanofiltration membrane made in China, welcome to get catalog and price list from our factory. All custom made products are with high quality and competitive price. Also, OEM service is available.
Product Details

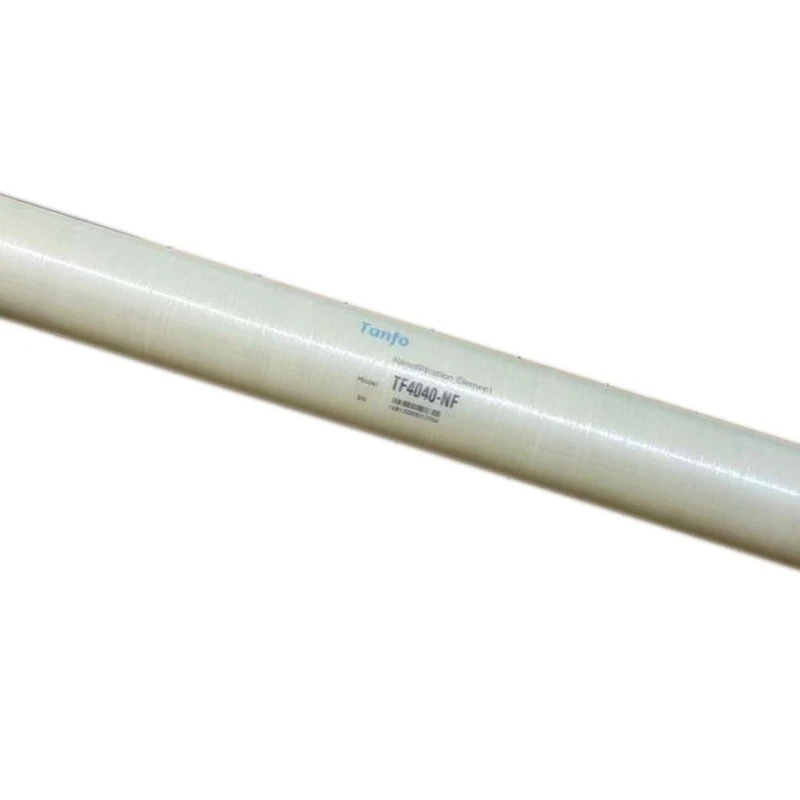

The NF4040 nanofiltration membrane features a standard 4-inch diameter and 40-inch length configuration, delivering selective divalent ion rejection, effective medium molecular weight organic removal, high permeate productivity, low-pressure operation, and strong anti-fouling performance. Its robust membrane chemistry provides wide chemical tolerance and stable operation across diverse industrial water treatment conditions.
Product Specifications
The NF4040 nanofiltration membrane is engineered for industrial water purification, hardness reduction, partial desalination, and wastewater reuse applications where high flux and selective separation performance are required.
|
Parameter |
Specification |
|
Model |
NF4040 |
|
Membrane Type |
Thin Film Composite Polyamide |
|
Element Size |
4040 Standard Industrial Size |
|
Diameter |
4.0 inch (101.6 mm) |
|
Length |
40 inch (1016 mm) |
|
Separation Technology |
Nanofiltration |
|
Operating Pressure |
4 – 10 bar |
|
Maximum Operating Temperature |
45°C |
|
Recommended Temperature Range |
5 – 45°C |
|
Divalent Ion Rejection |
High Selectivity |
|
Organic Removal Performance |
Medium Molecular Weight Organics |
|
Recovery Rate |
Up to 75% |
|
pH Range (Continuous Operation) |
4 – 10 |
|
pH Range (Cleaning) |
2 – 11 |
|
Flux Performance |
High Flux Design |
|
Fouling Resistance |
Enhanced Anti-Fouling Characteristics |
|
Chemical Resistance |
Broad Chemical Compatibility |
|
Installation Compatibility |
Standard 4040 Pressure Vessels |
|
Applications |
Water Softening, Process Water Treatment, Industrial Water Purification, Wastewater Reuse |
Separation Characteristics
The membrane is specifically designed to preferentially reject divalent ions including:
Calcium (Ca²⁺),Magnesium (Mg²⁺),Sulfate (SO₄²⁻),Heavy metal ions
Natural organic matter,Color compounds
Medium molecular weight organic contaminants
At the same time, a portion of monovalent ions can pass through the membrane, making it suitable for applications requiring partial desalination rather than complete salt removal.
Key Features
- Selective removal of divalent ions (Ca²⁺, Mg²⁺)
- Effective organic and color reduction
- Low-pressure operation for reduced energy cost
- Compatible with standard 4040 pressure vessels
- Stable performance under variable feed water conditions
Technical Highlights
- Operating pressure: 4–10 bar
- Temperature range: 5–45°C
- pH range (operation): 4–10
- Recovery rate: up to 75%
- High fouling resistance and easy cleaning recovery
Application Scope
- Groundwater softening
- Small industrial water treatment systems
- Process water purification
- Pre-treatment for RO systems
- Water reuse projects
Why Choose NF4040 nanofiltration membrane
- Compact design suitable for small-to-medium systems
- Stable performance with low energy consumption
- Flexible OEM customization support
- Proven compatibility with standard industrial systems
