Fujian Huamo Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of 8040 high flux nanofiltration membrane in China. If you're going to wholesale bulk 8040 high flux nanofiltration membrane made in China, welcome to get catalog and price list from our factory. All custom made products are with high quality and competitive price. Also, OEM service is available.
Product Details

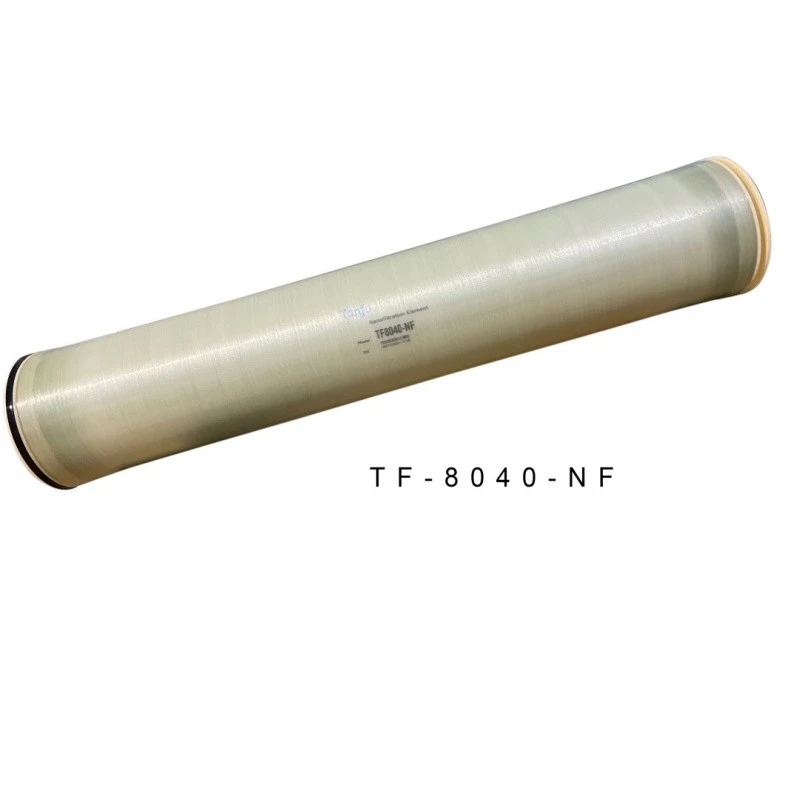

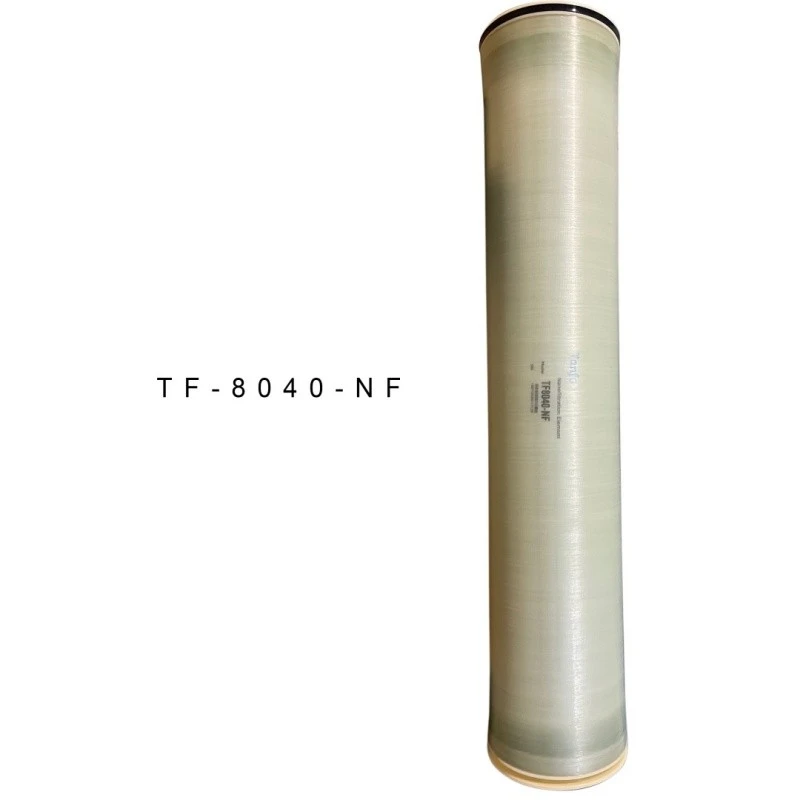

The 8040 High Flux Nanofiltration Membrane features a standard 8-inch diameter and 40-inch length configuration with an optimized high-flux membrane structure. It delivers high permeate output, efficient divalent ion rejection, superior organic matter removal, low-energy operation, and excellent resistance to fouling, making it suitable for demanding industrial water treatment applications.
Product Specifications
The 8040 High Flux Nanofiltration Membrane is engineered for high-capacity industrial membrane systems requiring efficient hardness reduction, organic contaminant removal, partial desalination, and water reuse treatment.
|
Parameter |
Specification |
|
Model |
NF8040-HF |
|
Membrane Type |
Thin Film Composite Polyamide |
|
Element Size |
8040 Standard Industrial Configuration |
|
Diameter |
8.0 inch (201 mm) |
|
Length |
40 inch (1016 mm) |
|
Membrane Area |
Large Effective Membrane Surface |
|
Separation Technology |
Nanofiltration |
|
Operating Pressure |
4 – 10 bar |
|
Maximum Operating Temperature |
45°C |
|
Recommended Operating Temperature |
5 – 45°C |
|
Divalent Ion Rejection |
High Selectivity |
|
Organic Removal Performance |
High Removal Efficiency |
|
Recovery Rate |
Up to 75% |
|
pH Range (Operation) |
4 – 10 |
|
pH Range (Cleaning) |
2 – 11 |
|
Flux Performance |
High Flux Design |
|
Fouling Resistance |
Enhanced Anti-Fouling Characteristics |
|
Cleaning Recovery |
Excellent |
|
Chemical Resistance |
Broad Chemical Compatibility |
|
Installation Compatibility |
Standard 8040 Pressure Vessels |
|
Typical Applications |
Industrial Water Treatment, Water Reuse, Process Water Purification, Resource Recovery |
Key Features
- High permeate flux for large-scale operation
- Strong removal of hardness and organic matter
- Low operating pressure compared to RO
- Excellent anti-fouling performance
- High system recovery efficiency
Technical Highlights
- Diameter: 8-inch standard
- Operating pressure: 4–10 bar
- Temperature range: 5–45°C
- Recovery rate: up to 75%
- High flux membrane structure design
Application Scope
- Municipal water treatment plants
- Industrial reuse systems
- Textile and dye wastewater treatment
- Boiler feed water pretreatment
- Large-scale recycling systems
Why Choose 8040 High Flux Nanofiltration Membrane
- Higher output per element reduces system footprint
- Optimized for industrial-scale efficiency
- Lower operating cost per cubic meter
- Ideal for high-capacity continuous operation
