Fujian Huamo Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of pvc ultrafiltration membrane module in China. If you're going to wholesale bulk pvc ultrafiltration membrane module made in China, welcome to get catalog and price list from our factory. All custom made products are with high quality and competitive price. Also, OEM service is available.
Product Details

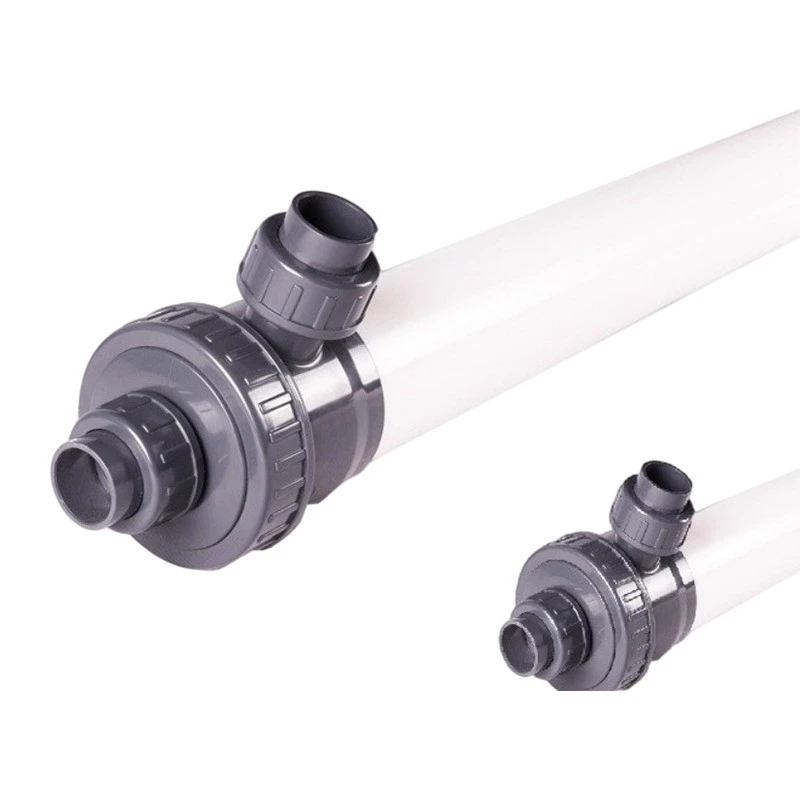

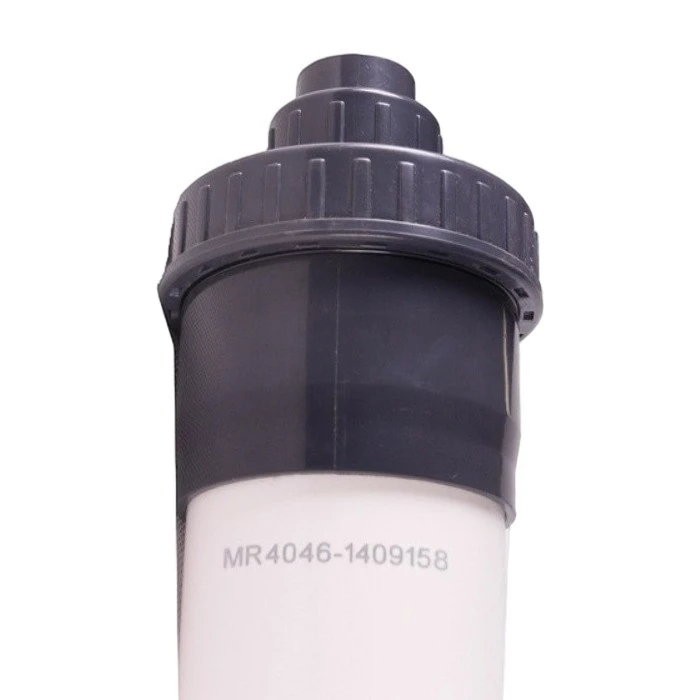

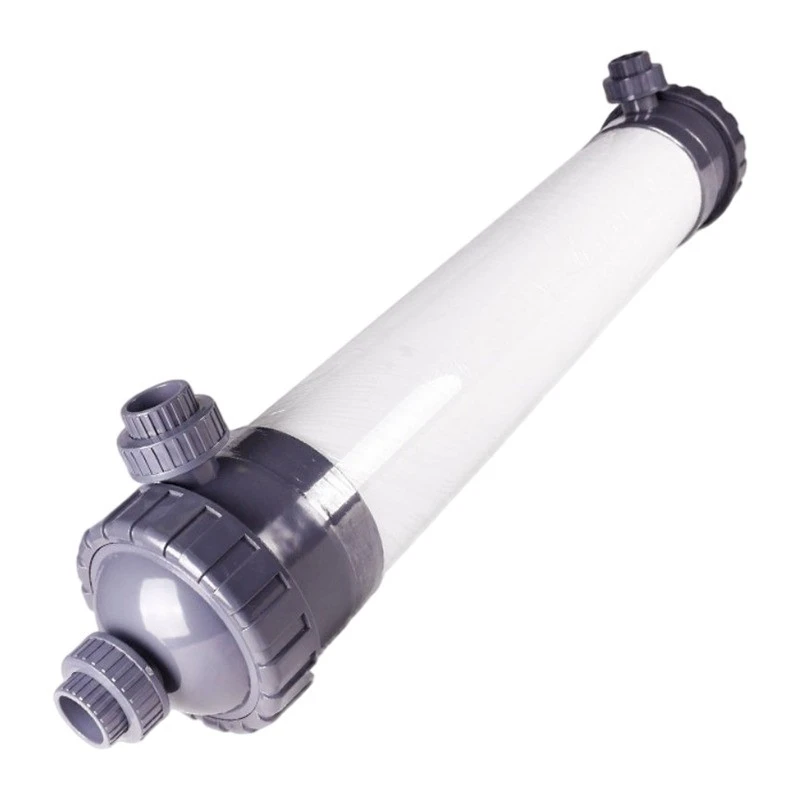

PVC ultrafiltration membrane module is built with durable PVC material, providing stable mechanical strength and good chemical resistance for continuous operation in water and wastewater treatment systems. It effectively removes suspended solids, bacteria, and viruses while maintaining consistent filtration performance and low energy consumption, making it suitable for long-term industrial use.
In engineering and procurement projects, PVC UF membrane module is widely selected for reverse osmosis pretreatment, industrial water recycling, and drinking water purification systems where stable SDI control and reliable operation are required. As a hollow fiber membrane supplier solution, it is often evaluated based on ultrafiltration membrane price and system capacity to match different project budgets and performance requirements, while maintaining ease of maintenance and operational stability.
Product Specifications
Model | UF-4040 | UF-4046 | UF-6060 | UF-8060 | UF8040 | UF-1060 |
Molecular weight cut off(Dalton) | 50,000 | 100,000 | ||||
Size(mm) | 90x1016 | 90x1155 | 160x1352 | 200x1405 | 202x1016 | 250x1715 |
Effective membrane area | 4㎡ | 4.8㎡ | 15㎡ | 25㎡ | 21㎡ | 52㎡ |
Initial flux | 0.8m3/h | 1m3/h | 4.5m3/h | 5m3/h | 5m3/h | 9m3/h |
Virus removal rate | ≥4log | ≥6log | ||||
Type | Inside-out | |||||
Shell | PVC | |||||
Seal materials | epoxy resins | |||||
Membrane material | PVC | |||||
Hollow fiber id/od size | 1.0mm/1.6mm | |||||
Produced water pollution index(SDI25) | ≤3 | |||||
Max operating pressure | 0.3MPa | |||||
Suggest operating pressure | ≤0.2MPa | |||||
Max transmembrane pressure | ||||||
Backwash pressure | 0.05-0.1MPa | |||||
Design flux | 40-120L/㎡/h | |||||
Operating mode | Cross flow or dead-end flow | |||||
Permeate turbidity | ≤0.1NTU | |||||
Operating temperature | 5-40℃ | |||||
PH range | 2-10 | |||||
Product Advantages
Our UF membrane module is designed with a stable hollow fiber structure and consistent filtration precision, ensuring reliable removal of suspended solids, bacteria, and colloids under varying feed water conditions. With a controlled MWCO of 50,000–100,000 Dalton and permeate turbidity ≤0.1 NTU, it provides stable protection for downstream systems, especially in RO pretreatment applications where SDI control is required.
In industrial procurement projects, It is often selected based on ultrafiltration membrane price and long-term operating cost, rather than only initial performance parameters. The combination of low-pressure operation (≤0.2 MPa), effective backwashing, and stable flux performance helps reduce maintenance frequency and overall system downtime, which is a key consideration for buyers evaluating hollow fiber membrane supplier options.
Our Advantages
Our PVC ultrafiltration membrane module stands out not only for its reliable performance but also for the solid strengths behind it. We implement strict quality control throughout production, ensuring each module meets consistent and high standards. With fast delivery and competitive pricing, we offer excellent value without compromise. Beyond supplying modules, we use them to build complete water treatment equipment - giving us in-depth understanding of real-world application needs. Backed by a mature technical team and extensive engineering experience, we provide integrated support from product to project, making us a trusted partner for efficient and cost-effective membrane solutions.
FAQ
1. What feed water quality is suitable for your UF membrane modules?
Our modules are suitable for treating:
Surface water /Groundwater /Municipal water /Industrial wastewater /RO pretreatment water
/Reclaimed water reuse systems
We can evaluate your feed water analysis to confirm compatibility.
2.Can your membrane modules replace other brands?
Yes. We can manufacture compatible replacement modules for many major international brands, subject to dimension and performance requirements. Custom matching services are available.
3. Do you only sell membrane modules, or can you support complete water treatment projects?
We do both. In addition to supplying industrial ultrafiltration membrane modules, we use them to manufacture complete water treatment equipment. Our technical team has extensive engineering experience across various projects, so we can provide not just products but also system design, technical support, and after-sales service. This makes us a one-stop solution for customers looking for reliable, cost-effective membrane filtration systems.
