Fujian Huamo Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of large scale seawater ro plant in China. If you're going to wholesale bulk large scale seawater ro plant made in China, welcome to get catalog and price list from our factory. All custom made products are with high quality and competitive price. Also, OEM service is available.
Product Description

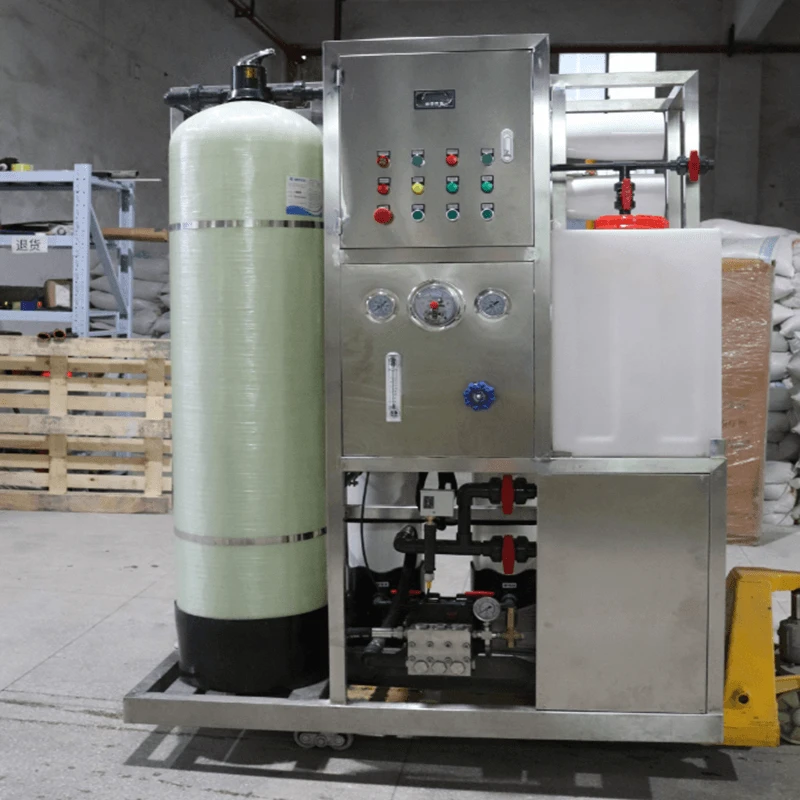

Overview of Our Municipal & Industrial Large Scale Seawater RO Plant
Our high-capacity large scale seawater RO plant is a fully integrated, turnkey infrastructure solution engineered for high-volume freshwater production. Designed to handle severe marine environments and fluctuating feed-water qualities, this mega-scale platform seamlessly combines:
- High-Density SWRO Membrane Arrays: Utilizing premium, high-rejection elements to maximize permeate recovery.
- Isobaric Energy Recovery Devices (ERD): Advanced pressure exchangers that slash electrical energy consumption.
- Heavy-Duty High-Pressure Pumps: Equipped with variable frequency drives (VFD) for optimized hydraulic load.
Parameters
|
Item |
Specification |
|
Technology |
Industrial Seawater Reverse Osmosis (SWRO) |
|
Daily Capacity |
Custom 1,000 – 50,000 $m^3/\text{day}$ (or higher) |
|
Salt Rejection Rate |
≥99.5%-99.8% |
|
Control System |
PLC Automated Monitoring |
Large-Capacity Seawater Desalination with Energy Efficiency
Modern coastal areas, large resorts, and heavy industries require uninterrupted freshwater supplies. Standard seawater desalination plants are costly to operate and difficult to scale, while our advanced large-scale reverse osmosis systems offer market-leading cost-effectiveness and superior performance:
- Optimized Energy Consumption: Achieves industry-leading low energy consumption, only 2.5 - 3.5 kWh/m³.
- Superior Desalination Rate: Guaranteed stable desalination rates, ≥99.5% - 99.8%.
- Corrosion-Resistant Piping: Utilizes high-quality corrosion-resistant piping to prevent pitting and crevice corrosion under extreme pressure.
- High TDS Tolerance: Easily converts raw seawater with salinity up to 45,000 ppm into high-quality drinking water or process water.
Intelligent Automation and Superior System Stability
Operational downtime in municipal or factory environments can have catastrophic consequences. Our industrial-grade large-scale seawater reverse osmosis systems stand out with their intelligent PLC control center, ensuring uninterrupted 24/7 automated operation:
- Modular skid-mounted configuration: Facilitates phased installation, easy integration with civil engineering projects, and seamless expansion for future applications.
- Seamless post-treatment integration: Seamlessly connects to mineralization, disinfection, or downstream EDI systems for ultrapure water pipelines.
Industrial Value, Sustainability & Long-Term ROI
For large-scale projects, investing in our sustainable seawater desalination plant guarantees long-term compliance, water security, and a rapid return on investment:
- Minimized OPEX: Energy recovery devices recover up to 98% of hydraulic energy from the brine stream.
- Guaranteed Water Independence: Insulates your operations from local groundwater depletion and climate-induced droughts.
- Eco-Friendly Concentrate Management: Optimized brine discharge designs to meet strict local marine environmental regulations.
- Asset Longevity: Heavy-duty engineering and smart automated flushes ensure a system lifespan exceeding 15–20 years.
FAQ
Q1: How does a large scale seawater RO plant control its operational power costs?
A1: Our plants optimize energy efficiency by integrating advanced Isobaric Energy Recovery Devices (ERD). These systems capture hydraulic energy from the high-pressure brine waste stream and recycle it back into the filtration process. This significantly reduces the workload on the main high-pressure pumps, lowering overall electricity consumption and operational expenditures.
Q2: What measures are taken to protect the desalination plant from seawater corrosion?
A2: To withstand high-pressure saline environments, all critical wet components are constructed from premium Super Duplex Stainless Steel and high-strength FRP (Fiber Reinforced Plastic) pressure vessels. These specialized materials offer superior resistance to pitting, crevice corrosion, and salt spray, ensuring long-term structural integrity in harsh coastal environments.
Q3: How do you prevent membrane clogging and fouling in high-capacity SWRO systems?
A3: Our plant ensures comprehensive membrane protection through a robust, multi-stage conventional pretreatment production line. We use multi-media filters to capture suspended solids and turbidity, followed by high-precision cartridge filters to remove fine particles. Combined with continuous antiscalant dosing and automatic clean water flushing circulation, this multi-barrier configuration effectively reduces organic fouling and scaling, thus protecting the reverse osmosis membrane.
